Great architecture is a team effort. ArchiCAD is an award-winning tool for BIM professionals the world over, and it comes with a host of collaboration tools that make it easy to share work and collaborate on designs. ArchiCAD: Management & Collaboration covers everything that an advanced user should know when using ArchiCAD on large projects and in large teams. It's designed to replicate all the tasks of a BIM manager or a BIM coordinator, while optimizing the workflow and performance of your ArchiCAD setup. Join Thiago Mundim, as he shows how to implement BIM Server to network projects with simultaneous access, monitor file size, use Hotlinked Modules to reference external ArchiCAD files, create reusable templates, and import IFC files from other CAD systems. Instructor •.

Thiago Mundim is an architect, urbanist, and educator. Thiago has 15 years of experience in the construction industry, and over 10 years using Building Information Modeling (BIM).

He is also a certified teacher, having trained over 200 architects and students on BIM technology. Thiago was awarded a master's degree in architecture by the Architectural Association School of Architecture in London. He started his career as an architect at firms in Brazil and London, working for international practices delivering large projects in Europe, South America, and Asia. Related courses • Course By: Thiago Santos Mundim 5h 54m 23s • Course By: Thiago Santos Mundim 5h 54m 23s • Course By: Thiago Santos Mundim 2h 43m 8s • Course By: Thiago Santos Mundim 2h 43m 8s • Course By: Scott Onstott 8h 46m 34s • Course By: Scott Onstott 8h 46m 34s • Course By: Paul F.

Aubin 11h 58m 8s • Course By: Paul F. Aubin 11h 58m 8s • Course By: Eric Wing 2h 44m 12s • Course By: Eric Wing 2h 44m 12s • Course Transcript - On this file I have two layouts, but I don't have anything on the model, so if I go here under ground floor it's empty. I have no views, I just have two layouts with two drawings that are linked to another model file.

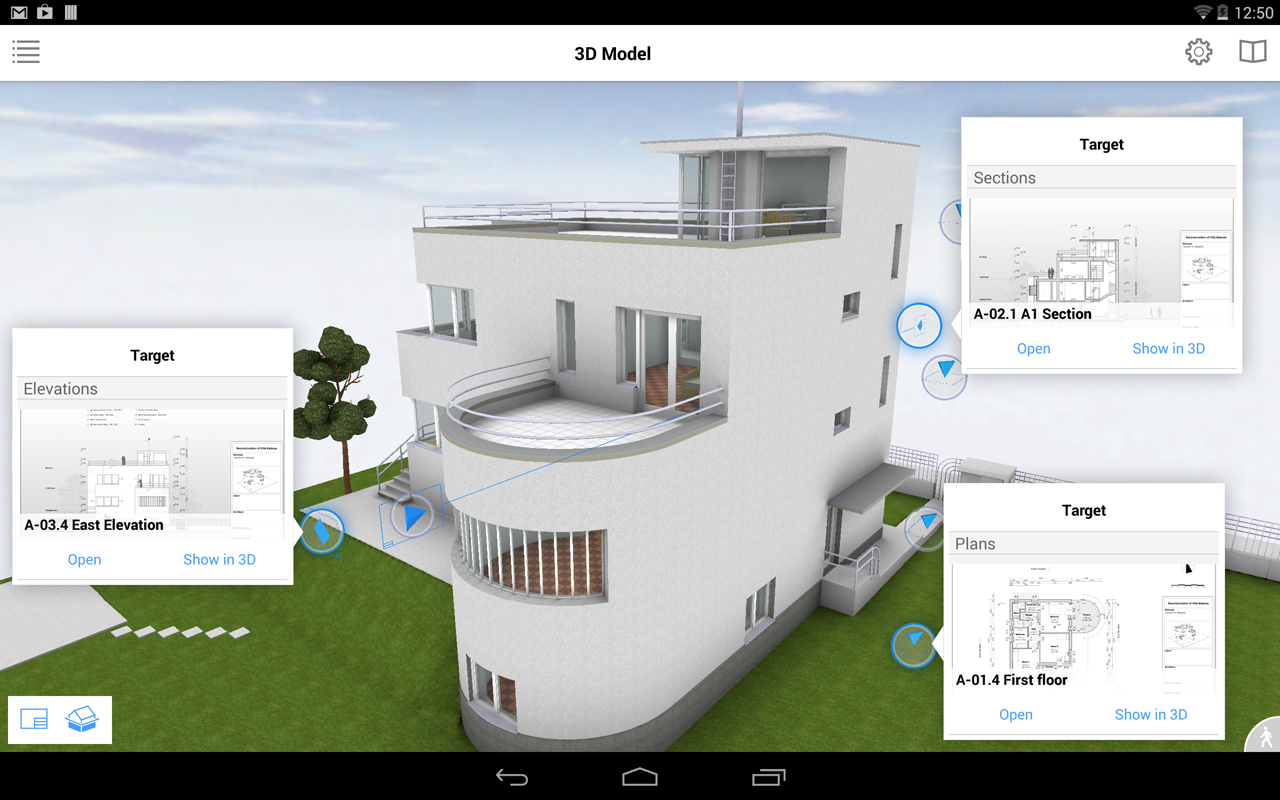

ArchiCAD 10 Project File (the Store Drawing in the Project file checkbox will be checked in the Drawing Settings Dialog). If a Drawing was not saved with the Layout in PlotMaker 9 (Include all linked files checkbox of the Save as Dialog in PlotMaker 9 is not checked), the Drawing generated from it in ArchiCAD 10 will be set. BIMx IS A VIEWER APP — DOWNLOAD ONLY IF YOU WANT TO VIEW ARCHICAD MODELS ON YOUR MOBILE DEVICE(S) GRAPHISOFT's mobile BIM communication tool, BIMx, is the ultimate BIM project communication app. It features the 'BIMx Hyper-model', a unique technology for navigating the.

So, if I open the model file I have here the model, the views, but I don't have any layout. Now, going back to the layout file, on this one we have only two layouts, but when you have hundreds of them, you will end up also with a heavy file that takes a long time to update all the drawings, which could be quite frustrating. So, there is another way to keep the layout file even smaller, and that's by using PMK files. So, I'm gonna go back to the model file again. Let's go to the Publisher Set where we can create our sets, and we have those two and their ArchiCAD sets here, which is one for every Layout and another for every View. I'm gonna open this View. We're gonna use this one with a View, so I'm gonna open it, and here we have, again, a list of all the Views that we have saved on the View Map.

So, here with the Grove House top selected I'm gonna change the format from PDF to PMK. Now, every drawing inside this folder is now gonna be saved in PMK. But, I only need to save the ground floor and the first floor for now. Putumayo Presents Samba Bossa Nova Rar Extractor there. So, I'm gonna go ahead and publish these selected items.

ArchiCAD is going to save a PMK file for every one of those Views. Now, if we go back to the layout file, instead of linking this drawing to another model, I'm going to right-click, Link Drawing to, it is also an external source, but instead of a file, I will chose the PMK file, so I'm gonna open this one, and then I'm gonna do the same with the first floor. So, right-click, Link Drawing to, external source, and then the first floor PMK file. So, for the old users of 2D CAD, so it's a light file that contains all the information about that drawing. So, it's not automatic anymore if I do change this on the model file, I won't get those changes here unless I publish the PMK file again. But, this can be a very streamlined process. Crack Ups Popping Candy Gluten on this page.

So, if I go back there to the model file, and if I perform any change here, all I have to do is go to the View Publisher Set, publish those drawings again. Make sure you publish on the same folder so you actually replace the original file. And then going back to the layout file, that drawing should be updated. The good thing is that PMK is smart enough to bring all the information like the revisions, and put them on the revision object in here. So, if you have a lot of layouts, this is the lightest way to consolidate them.

• Practice while you learn with exercise files.

There are CAD (computer-aided design) programs to meet the needs of various people, from homeowners who are redesigning their kitchens to professional architects and designers. But make no mistake, ArchiCAD 8 -- the latest version of Graphisoft's architectural CAD program -- is for professionals only.

Expensive and relatively difficult to master, ArchiCAD is just not designed for the hobbyist. Now Mac OS X-native, ArchiCAD 8 is faster than previous versions, and it offers improvements such as true solids modeling and streamlined control of elements and projects, through the new Info palette and Project Navigator features. 3-D Virtual Building Model Architects think in three dimensions, so Graphisoft has designed ArchiCAD's project workflow accordingly. Instead of working with a series of 2-D drawings, you use ArchiCAD to create a virtual 3-D model that incorporates all the elements of a building, including floors, walls, windows, and doors. With the program's new Project Navigator, you can then control layers, visibility, attributes, and scales to create views.

These views ultimately become the 2-D drawings and renderings that are needed throughout the design process -- conception, design development, working drawings, plan submission, and facilities management. With ArchiCAD, you can also create animations and QuickTimeVR, so you can view the designed spaces -- or any object or detail in the project -- from any angle. Automation Improves Workflow The updated Virtual Building model introduces a very organic way of working. To create a building section or cutaway view, you draw section lines on your floor plan with the Section tool, and ArchiCAD creates the section view in a separate window. When you make a change in the section view, that change is automatically incorporated in the floor plan, and vice versa. In version 8, it's similarly quite easy to create details. Using the Detail tool, you draw a circle around a portion of a drawing, such as a wall-floor intersection or a doorjamb, and ArchiCAD creates the basic detail drawing for you.

You can then add any necessary elements or notes to the detail with typical text and 2-D drafting tools. Throughout this process, the underlying Virtual Building model remains, so any edits you make to one view update all the other views. If you move a door in a perspective rendering or change its dimensions, for example, those changes occur automatically on the floor plans and elevations.

And automation doesn't stop at design changes. ArchiCAD also automates the creation of schedules, bills of materials, and quantities estimates. The database that drives the Virtual Building model contains and handles all this information.

For drawing management, ArchiCAD includes Plotmaker, a page-layout application. Plotmaker lets you establish the different sets of drawings you'll need during the project: for clients, for consultants, and for permit submissions. You can also export your drawings in PDF format, so people who are not using ArchiCAD can view them. And since the software updates all views with every change, Plotmaker can give you an updated set of drawings with a click of a button. One of this version's best features is a boon to communication: You can publish and automatically upload project documents to the Web.

Clients or consultants can then view, comment on, and mark up the documents online. The Team Approach Both the sole practitioner and the small design firm will benefit from ArchiCAD because the program can quickly and efficiently update all parts of a project. But ArchiCAD has other features that can enable large design firms to work more efficiently.

With ArchiCAD's Teamwork feature, designers can work on different parts of a project file simultaneously. Team members can check out drawings (as well as layers of a drawing or even parts of layers), make changes, and then check them back in to update the project file. The software prevents two people from working on the same part at the same time.

This collaboration can also occur remotely, with designers in different locations working on parts of the model and updating the project file the next time they log in to the office network. The High Price of Power All this sophisticated power comes at a price. Graphisoft has made significant improvements to ArchiCAD's interface, but the result is quite complex and difficult to learn, compared with programs such as Engineered Software's PowerCADD and Nemetschek's VectorWorks (Reviews, February 2003), which place a heavier emphasis on 2-D drafting. ArchiCAD is a 'use it or lose it' kind of application. Regular users will easily maintain proficiency, but occasional users will likely need to keep the user guide nearby. As with any CAD program, the work that you put into preparing the file for a specific project will pay off in the long run: You'll spend less time and effort on building your virtual model.

To speed the modeling process even more, ArchiCAD provides extensive templates and libraries of parametric symbols and objects, including furniture, structural elements, and textures. Macworld's Buying Advice At $3,950, ArchiCAD 8 seems expensive. But for that price, you get the most sophisticated top-of-the-line CAD program available for the Mac. Professionals who need it -- and can afford it -- won't be disappointed.

For current users of ArchiCAD, the upgrade price is more than reasonable, at $595 from version 7 and $890 from any versions previous to that.
